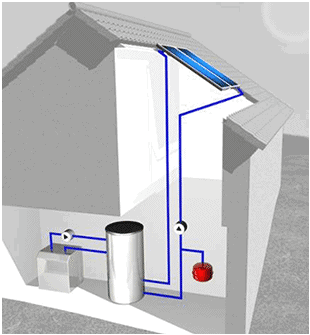

Apex Radiant Heating is constantly looking for ways to make our heating systems more efficient and cost effective to operate. With this in mind, we offer integrated solar systems for domestic water heating and as a source for supplying heat to radiant floor heating systems. These systems can greatly reduce fuel costs while helping to protect the environment

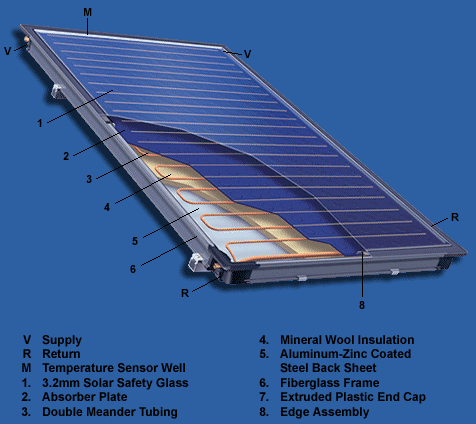

Buderus SKS 4.0 Solar Flat Plate Collector
The Buderus SKS 4.0 Solar flat plate collector is a high performance collector that is hermetically sealed and filled with an inert gas reducing heat loss. The double meander absorber optimizes heat transfer and allows 10 collectors to be connected in a single row.
Solar SKN 3.0
It has never been so easy to do something positive for the environment: such as combining the SKN 3.0 solar collector with a Buderus solar heating system. The SKN 3.0 is an ideal entry-level model that quickly pays for itself thanks to its excellent price/performance ratio.

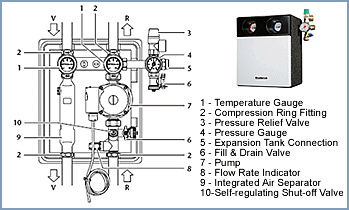

Buderus Solar Pump Station
The Buderus KS-line of solar pump stations are compact, pre-assembled 2-line pump kits that are completely integrated packages that are controlled using one of the Buderus solar controllers. The pre-integrated pump station allows for ease-of-installation and comes with a quiet variable flow circulation pump and all the operational and safety devices required for a reliable solar thermal system.
An air vent is included precluding the necessity to install a vent by the collector field on the roof. There are different size pump stations available designed to supporting from 1 to 50 collector systems. All supply and return connections are fitted with compression fitting omitting the need to braze copper piping. There are fill and drain valves for fast and simple charging and maintenance of the solar heat transfer fluid.
An air vent is included precluding the necessity to install a vent by the collector field on the roof. There are different size pump stations available designed to supporting from 1 to 50 collector systems. All supply and return connections are fitted with compression fitting omitting the need to braze copper piping. There are fill and drain valves for fast and simple charging and maintenance of the solar heat transfer fluid.
Solar Indirect Storage Tanks
The Buderus SM300/400 Indirect Solar Storage Tanks are highly efficient dual coil storage tanks that accumulate and store the collected solar heat from the collectors. The Buderus SM tanks have a second coil or heat exchanger that allow the system to connect a boiler as a back-up heating source for longer periods of low solar energy days.
The Buderus SM tanks come with an insulation blanket that maximizes heat retention in the tanks. All SM tanks are thermo-glazed and come with a magnesium anode to prevent corrosion.
